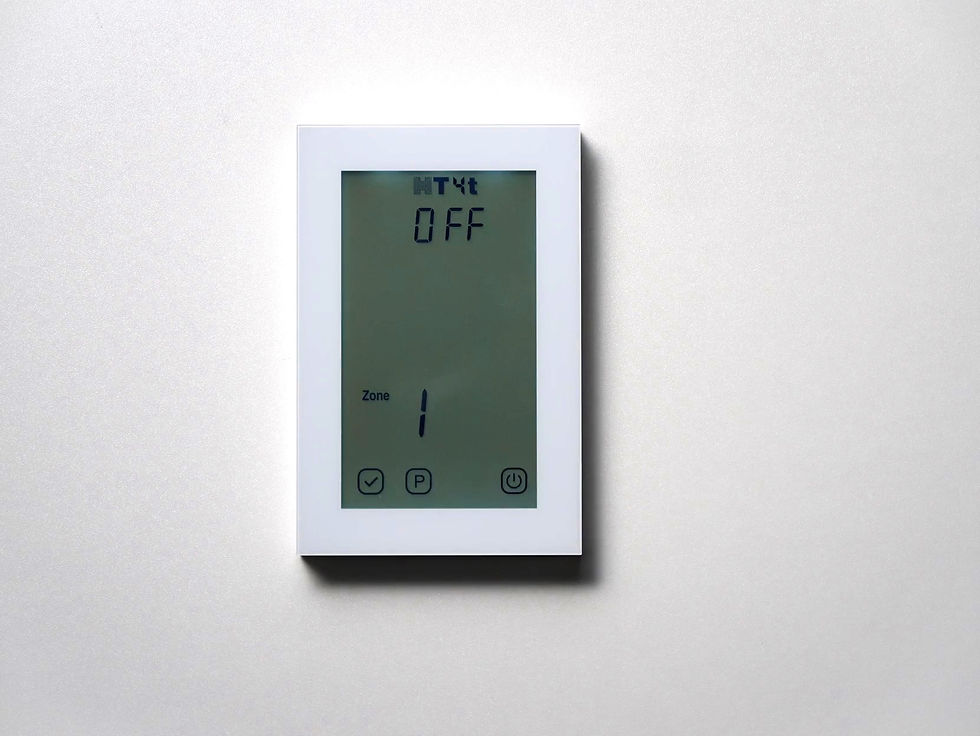

HT4tz Vertical White Underfloor Heating Thermostat



The HT4tz is Heatwell's dual purpose thermostat.  Link your heated towel rails to your floor heating thermostat.  The HT4tz has been designed to allow independent programming for heated towel rails and underfloor heating



Unlike most of Heatwell's thermostats, the HT4tz needs to be a new install.  The HT4tz can not be linked to heated towel rails where the wall has already been finished.



The HT4tz comes in three parts.  The thermostat, the mounting block, and the electrical block.



The electrical block is designed to be installed independently and does not need to be re-attached to the mounting block.



The thermostat is attached to the electrical block via an electrical ribbon.  The electrical block acts like a circuit breaker for an electrical surge.  The electrical block is the part likely to be affected by an electrical surge and can be replaced without having to buy another thermostat.



Parts are available.

HT4tz Thermostat | Heatwell

SKU: HT4tz
$240.00Price
GST Included |
Quantity
  • HT4tz Data Sheet



    Modes:  Manual / Program

    Settings:  (F) Floor probe / (A) Air Sensor

    Possible schedules:  7 days only

    Programmable:  2 per day (morning and evening)

    Time:  12-hour clock only

    Lock:  Yes

    Standby battery:  Yes

    Touch screen:  Yes

    Programming videos and programming notes available



    Diamensions:  12cm x 8cm x 1.8cm

    Weight:  0.3kg

    Volts - electrical block:  230-240 VAC

    Volts – thermostat:  5V

    Max Capacity:  16 Amps

    Maximum temp:  40 degrees Celsius

    Minimum temp:  5 degrees Celsius

    Frost Protection:  3 degrees Celsius

    Floor probe options:  3 kohms / 10 (default) / 15 / 25 / 50 / 100
